P-3616 Solid Carbide 52mm (40°) Angle Milling Cutter
RAISE
| Type of Cutter: | Angle Milling Cutter |
|---|---|
| Angle (β): | 40° |

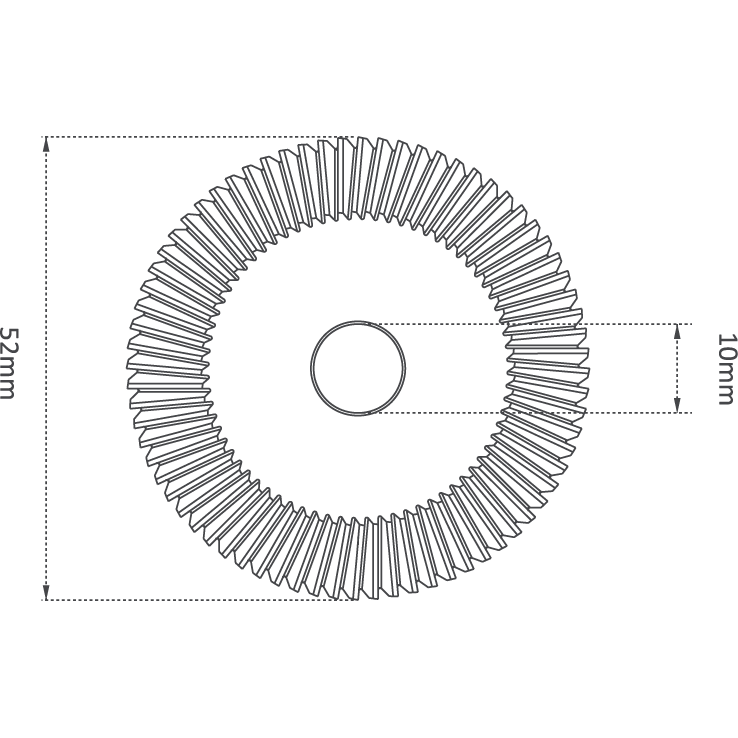

| Dimensions: | 7.4mm x 52mm (φ 52x7.4xφ 10x40°) |
| Material: | Solid Carbide |
| Applicable Machines: | 3D Elite HPC 9100 HPC 9110 HPC 9160MC HPC 9170MC HPC 9180MC Ilco 2184CD Ilco 2584CV Ilco 2585DU Ilco H2584CV JET7010 JET7020 |
| Replaces: | N/A |
| Part Number: | 3D Elite Wheel |
| RAISE Order Number: | P-3616 |
| Type of Cutter: | Angle Milling Cutter |
|---|---|
| Angle (β): | 40° |
| Dimensions: | 7.4mm x 52mm (φ 52×7.4xφ 10×40°) |
| Material: | Solid Carbide |
| Applicable Machines: | 3D Elite HPC 9100 HPC 9110 HPC 9160MC HPC 9170MC HPC 9180MC Ilco 2184CD Ilco 2584CV Ilco 2585DU Ilco H2584CV JET7010 JET7020 |
| Replaces: | N/A |
| Part Number: | 3D Elite Wheel |
| RAISE Order Number: | P-3616 |
